Center Differential: Assembly

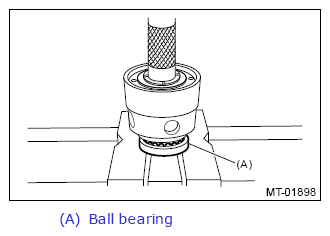

Install the ball bearings.

CAUTION: Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).

NOTE: Use a new ball bearing.

Courtesy of SUBARU OF AMERICA, INC.
