Reverse Brake Assembly And Intermediate Case

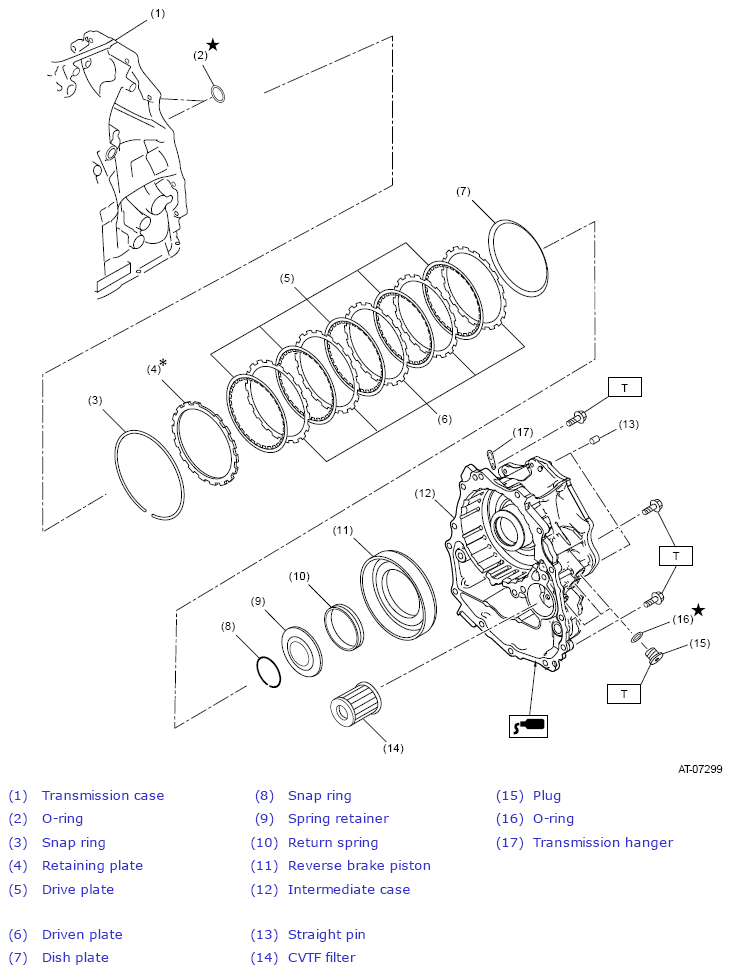

Fig 1: Reverse Brake Assembly And Intermediate Case Components (With Torque Specification)
G13647061Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
