Front Differential Assembly: Inspection

Check each component for scratches, damage or other faults.

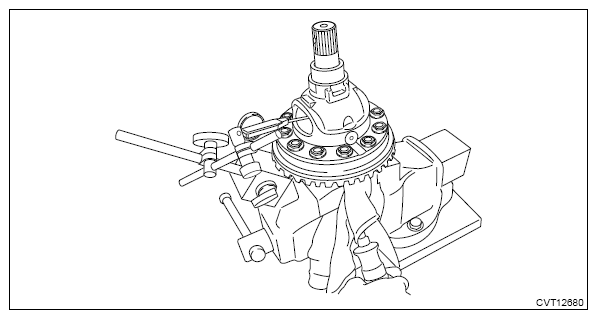

Inspect the backlash of the pinion gear.
Specification:

0.13 - 0.18 mm (0.0051 - 0.0071 in)

Courtesy of SUBARU OF AMERICA, INC.
Measure the hypoid gear backlash, and then adjust it to be within specification. Refer to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>FRONT DIFFERENTIAL ASSEMBLY>ADJUSTMENT .
