Crankshaft And Piston

WARNING: This page is about a different variant/trim than selected.

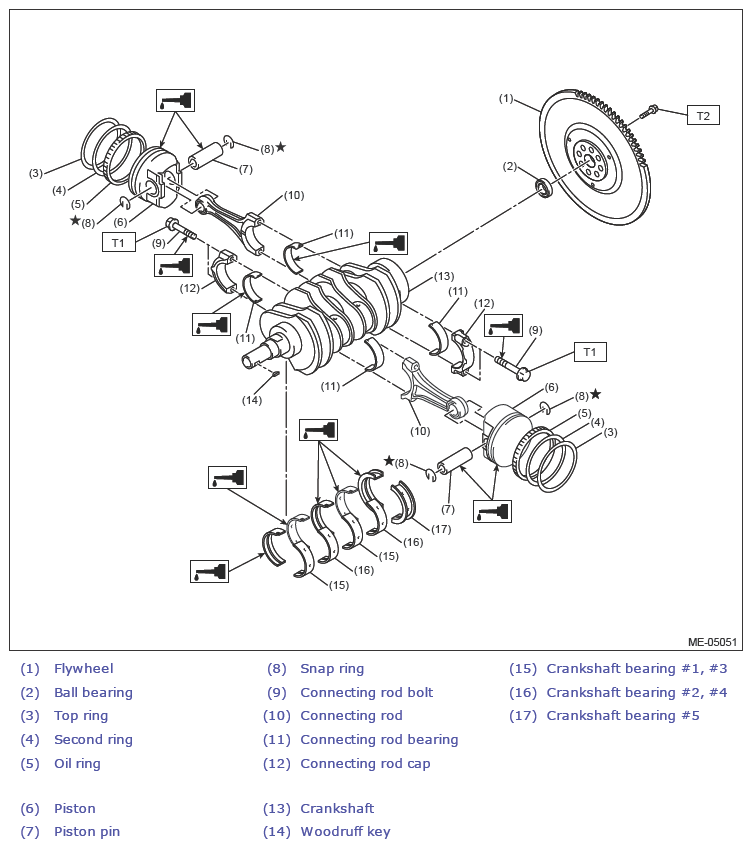

Fig 1: Crankshaft And Piston Components (With Torque Specification)
G13640440Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 52 (5.3, 38.4)

T2: Refer to CLUTCH SYSTEM>FLYWHEEL>INSTALLATION .
