STI Model

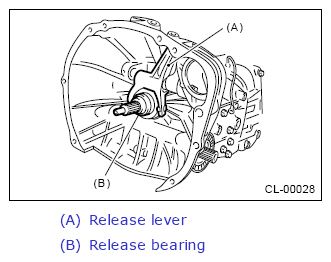

Apply grease to the release lever shaft, the contact surface of the release lever and release bearing, and the contact surface of the release bearing and release bearing guide.
Grease:

NICHIMOLY N-130 or equivalent
Attach the release bearing to the transmission.
Insert the release lever into the release bearing tab.

Courtesy of SUBARU OF AMERICA, INC.
Insert the release lever shaft into the release lever.
NOTE: Make sure the cut portion of the release lever shaft comes into contact with the spring pin.

Courtesy of SUBARU OF AMERICA, INC.
Tighten the plugs.
Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Operate the release lever and check if the release bearing moves smoothly.
Apply grease to the contact surface of the release lever and operating cylinder.
Grease:

NICHIMOLY N-130 or equivalent
Apply grease to the transmission main shaft spline.
Grease:

NICHIMOLY N-130 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
