Clutch Pedal: Disassembly

  1. Remove the clutch switches.

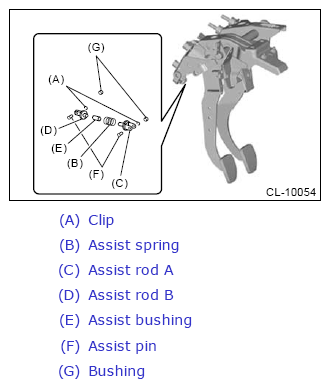

  2. Remove the clip, assist spring, assist rod A, assist rod B, assist bushing, assist pin and bushing.
    G13647029Courtesy of SUBARU OF AMERICA, INC.

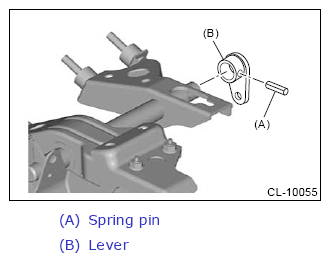

  3. Remove the spring pin and lever.
    G13647030Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the clutch pedal and pedal bushings.
    G13647031Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the stopper and clutch pedal pad.
    G13647032Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the stopper.
    G13647033Courtesy of SUBARU OF AMERICA, INC.
