Clutch Disc and Cover: Installation

Install the release bearing & lever. (Except for STI model) Refer to CLUTCH SYSTEM>RELEASE BEARING AND LEVER>INSTALLATION>EXCEPT FOR STI MODEL .

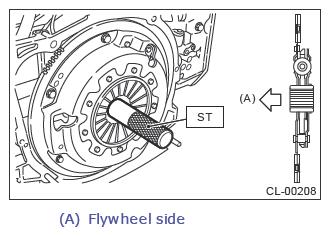

Insert the ST into the clutch disc and attach to the flywheel by inserting the ST end into pilot bearing.
NOTE: When installing the clutch disc, be careful to attach in the correct direction.

ST 499747100 CLUTCH DISC GUIDE

Courtesy of SUBARU OF AMERICA, INC.
Install the clutch cover and tighten the bolts to specified torque.
NOTE:
- When installing a clutch cover, position the clutch cover so that the spacing between the unbalance marks (paint mark) on the flywheel and clutch cover is 120° or more apart. (The unbalance mark indicates the direction of residual unbalance.)
- Temporarily tighten the bolts by hand. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)
- STI model

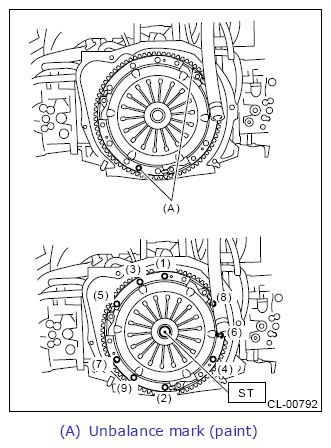

  Fig 1: Clutch Cover Bolts Tightening Sequence (STI Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model

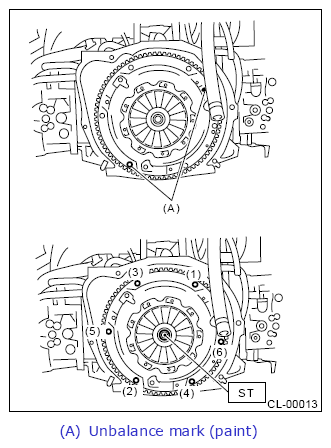

  Fig 2: Clutch Cover Bolts Tightening Sequence (Except For STI Model)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.

ST 499747100 CLUTCH DISC GUIDE
Install the transmission assembly.
6MT (TY75) model:

Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .

6MT (TY85) model:

Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
