TPMS Control Module

NOTE: TPMS CONTROL MODULE for model with keyless access with push button start is separated from the keyless access control module.
  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, remove the ground terminal from battery sensor.
  2. Remove the trunk room mat.
  3. Remove the trim panel - trunk rear.

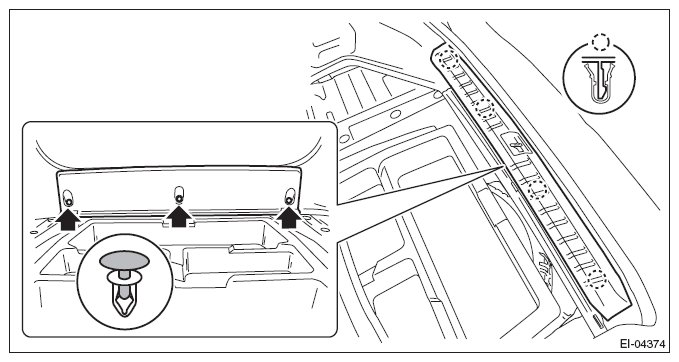

    1. Remove the clip.
    2. Release the claws, and remove the trim panel - trunk rear.
    G10269504Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the trim panel - trunk side LH. Refer to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  5. Remove the TPMS CONTROL MODULE.

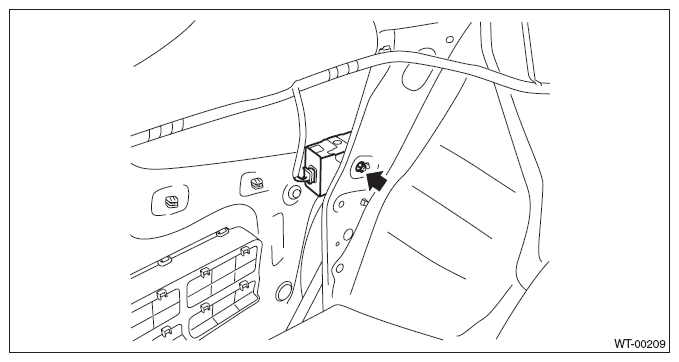

    1. Disconnect the connector.
    2. Remove the nuts to remove the TPMS CONTROL MODULE.
G10269505Courtesy of SUBARU OF AMERICA, INC.
