Bushing A - Trailing Link

Before assembly, inspect the following items and replace any faulty part with a new one.
- Perform visual check for damage or bend on the trailing link.
- Visually check the bushing for abnormal cracks, fatigue or damage.

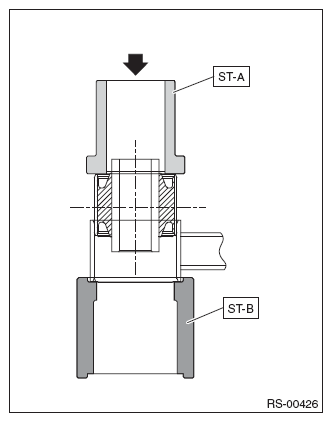

Using the ST-A and ST-B, press-fit the bushing.
CAUTION: Make sure to press the bushing straight in.

Preparation tool:

ST-A: INSTALLER (20099FG000)

ST-B: INSTALLER & REMOVER (BASE) (20099PA010)

Courtesy of SUBARU OF AMERICA, INC.
