Section 7 (Engine Intake System (Induction) And Turbocharger (2.5L)): Intercooler: Disassembly

WARNING: This page is about a different variant/trim than selected.

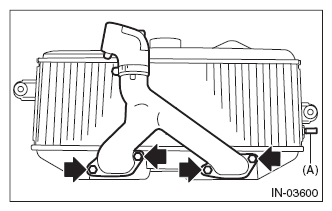

  1. Remove the clip (A) and intercooler duct from the intercooler.
    G10265152Courtesy of SUBARU OF AMERICA, INC.

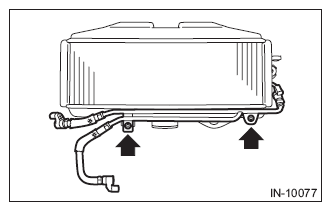

  2. Remove the PCV pipe assembly from the intercooler.
    G11571887Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intake duct from intercooler duct.
    G06344974Courtesy of SUBARU OF AMERICA, INC.
