Intake Duct: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground cable from battery.
- Remove the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>INTAKE MANIFOLD>REMOVAL .
- Remove the sensor, engine harness and fuel pipe from the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>INTAKE MANIFOLD>DISASSEMBLY .

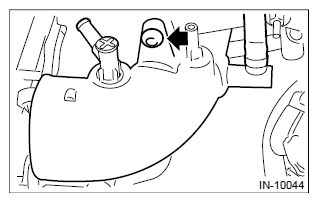

- Remove the intake duct from intake manifold.
