Components With Torque Specifications: INTERCOOLER

WARNING: This page is about a different variant/trim than selected.

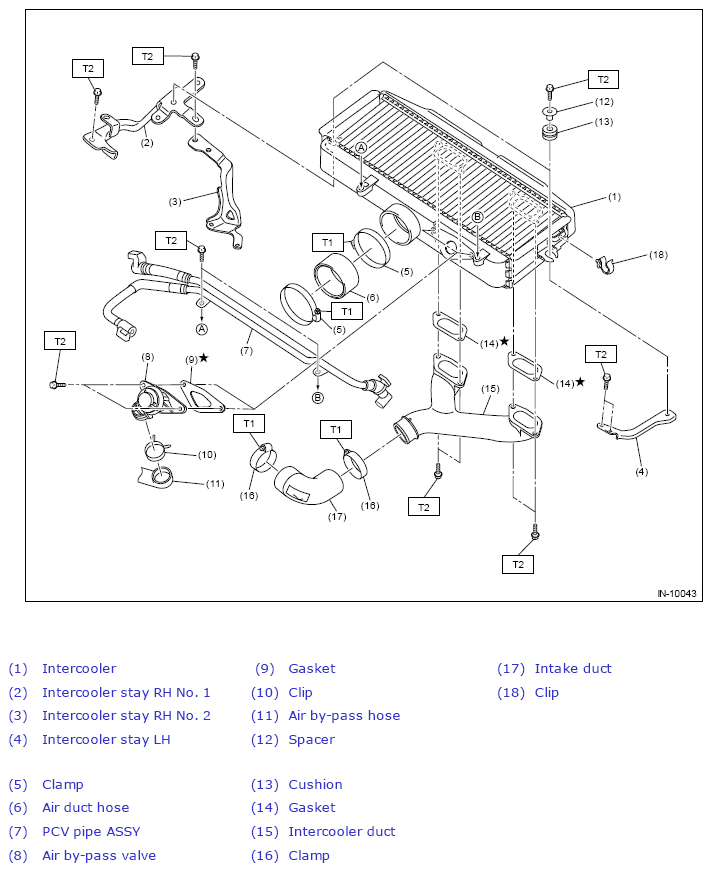

Fig 1: Intercooler Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3 (0.3, 2.2)

T2: 16 (1.6, 11.8)
