Air Cleaner Element: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
CAUTION:
Be sure to use SUBARU genuine air cleaner element depending on the engine type when replacing the air cleaner elements. Using other air cleaner element may affect the engine performance.
NOTE:
- Check that there is no dirt or dust within the air cleaner case. If any dirt or dust is found, clean it.

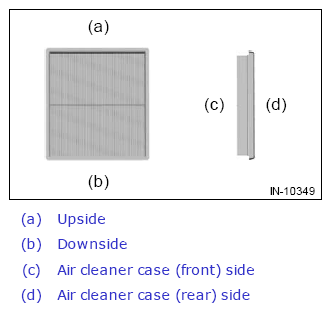

- Install the air cleaner element as shown in the figure.
 Courtesy of SUBARU OF AMERICA, INC.
|

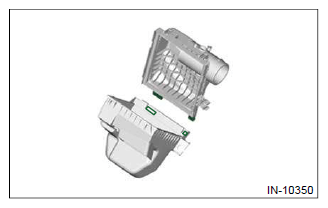

- When setting the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the air cleaner case (front) to insert.
 Courtesy of SUBARU OF AMERICA, INC.
|
Tightening torque:
2.5 N.m (0.3 kgf-m, 1.8 ft-lb)
