Section 2 (Manual Transaxle & Differential (TY856))
>>
General Description
>>
Components With Torque Specifications
>>
Reverse Idler Gear Assembly
Reverse Idler Gear Assembly
WARNING:
This page is about a different variant/trim than selected.

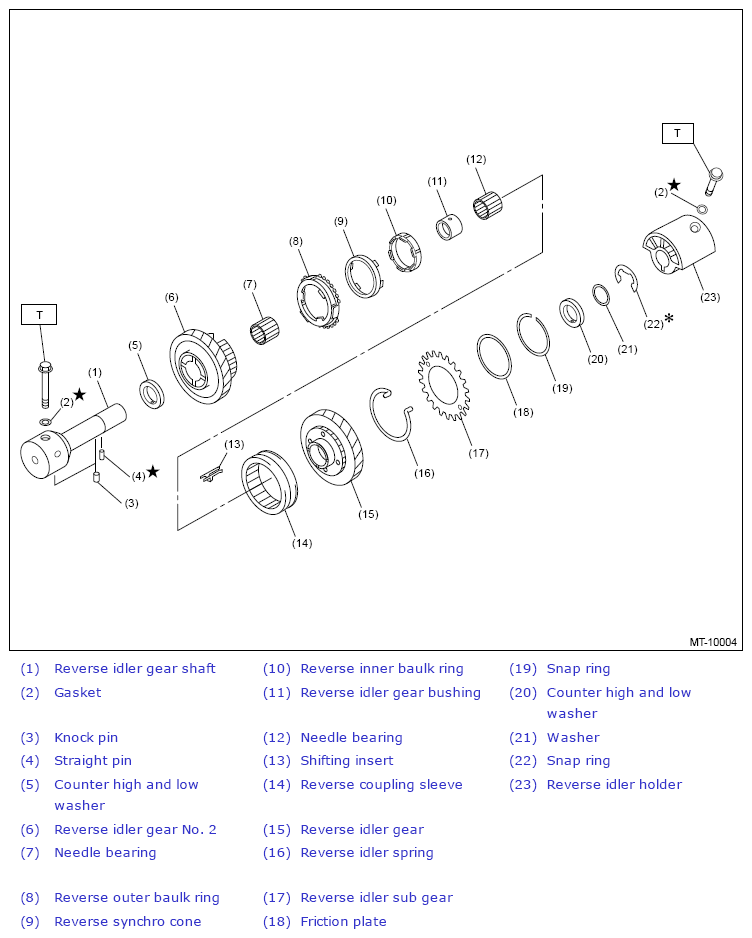

Fig 1: Reverse Idler Gear Assembly Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
