Drive Pinion Shaft Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Using the ST, measure drive pinion measurement A.
NOTE: When selecting the drive pinion shim, refer to measurement A. ST 398643600 GAUGE

Courtesy of SUBARU OF AMERICA, INC.
Using the ST and a press, attach the double taper roller bearing inner race (front side) to the drive pinion shaft.
ST 18723AA000 REMOVER

CAUTION: Do not apply pressure in excess of 40 kN (4.0 ton, 4.4 US ton, 3.9 Imp ton).

NOTE: Use a new double taper roller bearing.

Courtesy of SUBARU OF AMERICA, INC.

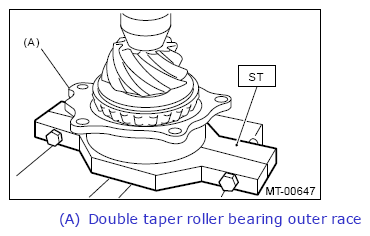

Using the ST and a press, attach the double taper roller bearing outer race and the double taper roller bearing to the drive pinion shaft.
ST 18723AA000 REMOVER
NOTE:
- Use a new double taper roller bearing.
- Push in to a position where the bearing rotates smoothly.
Courtesy of SUBARU OF AMERICA, INC.

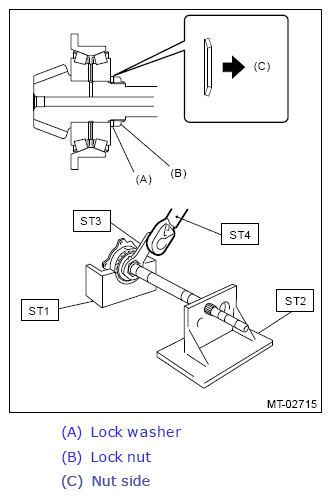

Attach a new lock washer and a new lock nut.

Set the ST to the drive pinion, and tighten the lock nut.

ST1 18667AA000 HOLDER

ST2 18664AA000 BASE

ST3 18621AA000 ADAPTER WRENCH

ST4 18852AA000 TORQUE WRENCH

NOTE:

Tighten using the ST and the straight line torque wrench.
Make sure the lock washer is installed in the proper direction.

Tightening torque:

265 N.m (27.0 kgf-m, 195.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When using a torque wrench other than ST4, use the calculation below to calculate and tighten the lock nut.
Tighten using the ST and the straight line torque wrench.
T = L1/(0.1 + L1) x 285

T	N.m (kgf-m, ft-lb)	Torque wrench setting
L1	m (in)	Torque wrench length
0.1 m (3.94 in)		Length of ST
285 N.m (29.0 kgf-m, 210 ft-lb)		Tightening torque (lock nut)

Courtesy of SUBARU OF AMERICA, INC.

Measure the starting torque. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>DRIVE PINION SHAFT ASSEMBLY>INSPECTION .

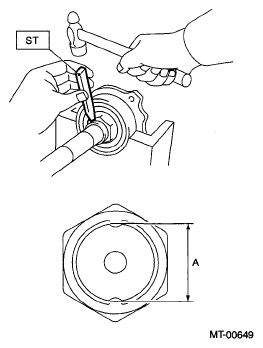

Using the ST, crimp the lock nut in 2 locations, with dimensions within A 37±0.5 mm (1.46±0.02 in).
ST 18670AA000 PUNCH

NOTE: Do not damage the crimp area of the lock nut.

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, measure drive pinion measurement B. ST 398643600 GAUGE

Courtesy of SUBARU OF AMERICA, INC.

Calculate from the calculation below to select 1 or 2 drive pinion shims from the following table.

6.5±0.0625 mm - (B - A) [0.26±0.0025 in - (B - A)]

NOTE: A: Measurement value in step 1)
B: Measurement value in step 8)

DRIVE PINION SHIM SPECIFICATIONS

Drive pinion shim
Part No.	Thickness mm (in)
32295AA270	0.15 (0.0059)
32295AA280	0.175 (0.0069)
32295AA290	0.20 (0.0079)
32295AA300	0.225 (0.0089)
32295AA310	0.25 (0.0098)
32295AA320	0.275 (0.0108)

Apply transmission gear oil to the side face of the double taper roller bearing, and attach the drive pinion shaft and the selected shims to the adapter plate.
Tightening torque:

54 N.m (5.5 kgf-m, 39.8 ft-lb)
Install the oil guide A.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
