Engine Oil Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
If engine oil is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.
- Drain engine coolant. Refer to COOLING(STI)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
- Remove the engine oil filter. Refer to LUBRICATION(STI)>ENGINE OIL FILTER>REMOVAL .

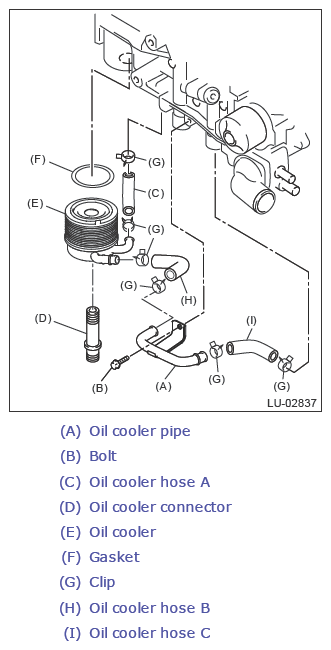

- Remove the bolt (B) holding the oil cooler pipe (A) to the oil pump.
- Remove the oil cooler pipe (A), oil cooler hose A (C), oil cooler hose B (H), and oil cooler hose C (I).
- Remove the oil cooler connector (D) and oil cooler (E).
