Reservoir Tank: Removal

WARNING: This page is about a different variant/trim than selected.

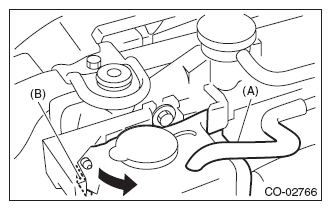

  1. Pull out the over flow hose (A).
  2. Pull out the reservoir tank to the arrow direction while pushing the claw (B).
G08539533Courtesy of SUBARU OF AMERICA, INC.
