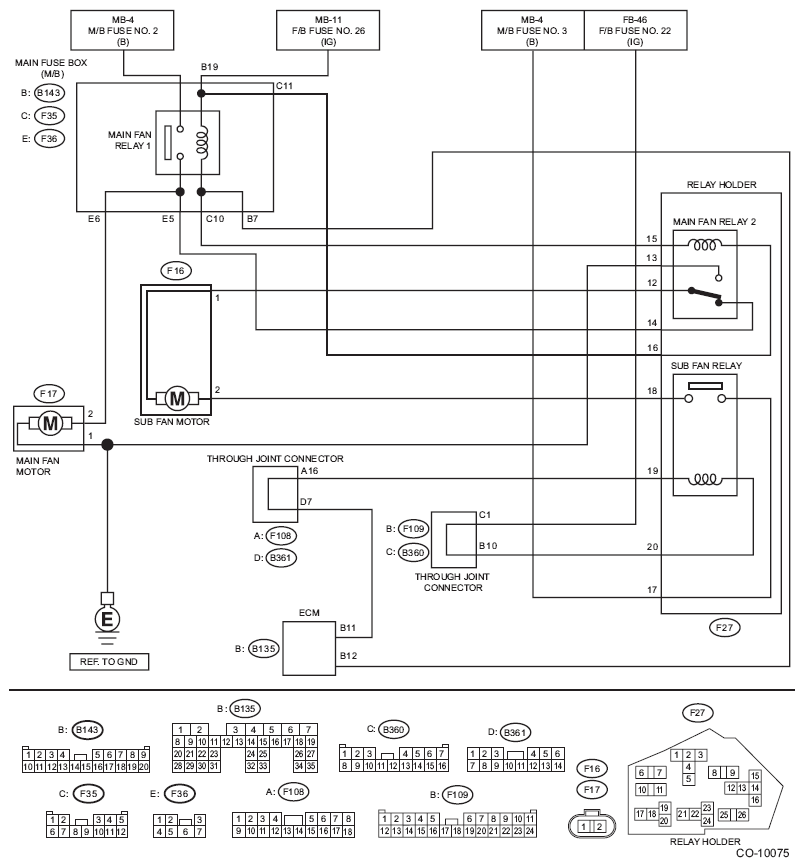

Radiator Fan System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Radiator fan system Refer to WIRING SYSTEM>RADIATOR FAN SYSTEM>WIRING DIAGRAM .

G11573934Courtesy of SUBARU OF AMERICA, INC.
