Coolant Filler Tank: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.
Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

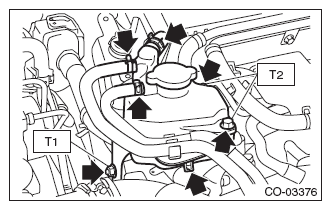

Fig 1: Coolant Filler Tank Bolts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
