Section 1 (Engine Starting System & Charging System (2.5L)): Starter: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Tighten the starter and cable stay (a) together using the upper bolt securing the starter.

Tightening torque:

T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

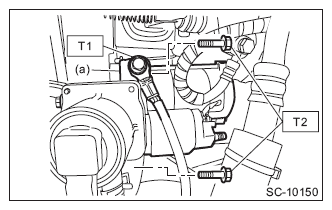

Fig 1: Starter, Cable Stay And Upper Bolts (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

11 N.m (1.1 kgf-m, 8.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
