Home >> Subaru >> 2021 >> WRX Base >> Repair and Diagnosis >> External Pages >> Different car >> Section 9 (Body Control System (Diagnostics)) >> Electrical Component Location >> Location

Section 9 (Body Control System (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

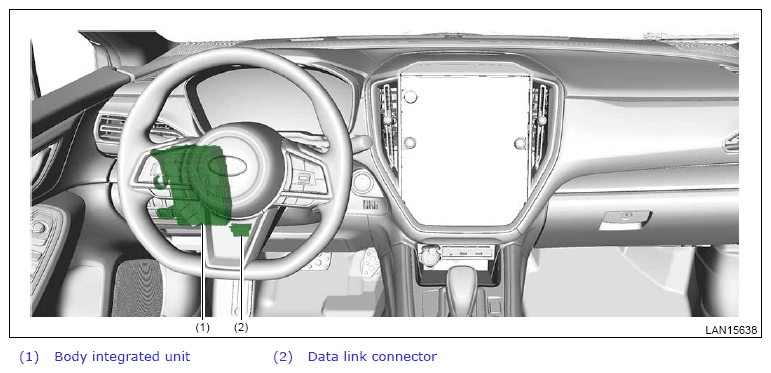

G14615339Courtesy of SUBARU OF AMERICA, INC.

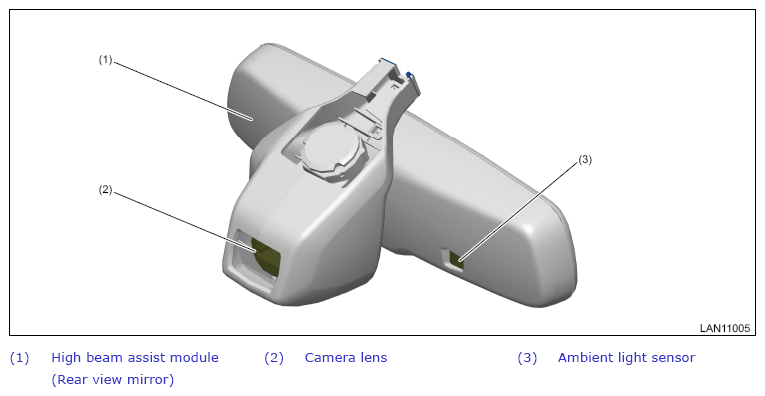

G14615340Courtesy of SUBARU OF AMERICA, INC.
