Example Of Writing For The Check Sheet Of Communication For Initializing

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

DIAG-CAN, (G) Chassis CAN, (J) Vehicle external connection CAN, Body CAN, DCM local CAN

When No. 1 is open

NOTE:

Perform the inspection from step 6 using the check sheet of communication for initializing. (There may be a malfunction other than open circuit) Go to 6.

G14615105

Courtesy of SUBARU OF AMERICA, INC.

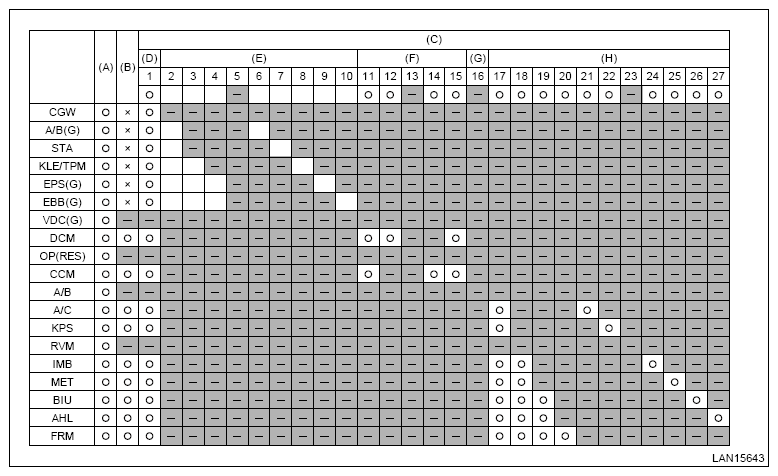

When No. 2 is open

G14615106

Courtesy of SUBARU OF AMERICA, INC.

When No. 3 is open

G14615107

Courtesy of SUBARU OF AMERICA, INC.

When No. 4 is open

G14615108

Courtesy of SUBARU OF AMERICA, INC.

When No. 5 is open

NOTE:

This is the same as for No. 13, No. 16 and No. 23, but it is possible to diagnose using examples of lost communication detection in each module.

G14615109

Courtesy of SUBARU OF AMERICA, INC.

When No. 6 is open

G14615110

Courtesy of SUBARU OF AMERICA, INC.

When No. 7 is open

G14615111

Courtesy of SUBARU OF AMERICA, INC.

When No. 8 is open

G14615112

Courtesy of SUBARU OF AMERICA, INC.

When No. 9 is open

G14615113

Courtesy of SUBARU OF AMERICA, INC.

When No. 10 is open

G14615114

Courtesy of SUBARU OF AMERICA, INC.

When No. 11 is open

G14615115

Courtesy of SUBARU OF AMERICA, INC.

When No. 12 is open

G14615116

Courtesy of SUBARU OF AMERICA, INC.

When No. 13 is open

NOTE:

This is the same as for No. 5, No. 16 and No. 23, but it is possible to diagnose using examples of lost communication detection in each module.

G14615109

Courtesy of SUBARU OF AMERICA, INC.

When No. 14 is open

G14615118

Courtesy of SUBARU OF AMERICA, INC.

When No. 15 is open

G14615115

Courtesy of SUBARU OF AMERICA, INC.

When No. 16 is open

NOTE:

This is the same as for No. 5, No. 13 and No. 23, but it is possible to diagnose using examples of lost communication detection in each module.

G14615109

Courtesy of SUBARU OF AMERICA, INC.

When No. 17 is open

G14615121

Courtesy of SUBARU OF AMERICA, INC.

When No. 18 is open

G14615122

Courtesy of SUBARU OF AMERICA, INC.

When No. 19 is open

G14615123

Courtesy of SUBARU OF AMERICA, INC.

When No. 20 is open

G14615124

Courtesy of SUBARU OF AMERICA, INC.

When No. 21 is open

G14615125

Courtesy of SUBARU OF AMERICA, INC.

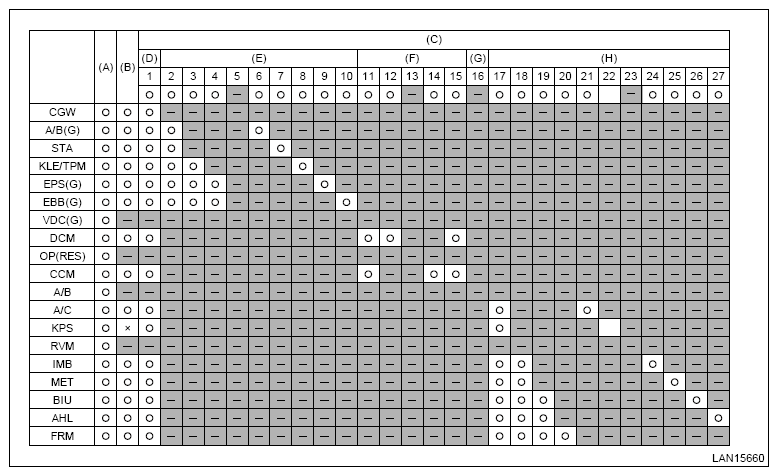

When No. 22 is open

G14615126

Courtesy of SUBARU OF AMERICA, INC.

When No. 23 is open

NOTE:

This is the same as for No. 5, No. 13 and No. 16, but it is possible to diagnose using examples of lost communication detection in each module.

G14615109

Courtesy of SUBARU OF AMERICA, INC.

When No. 24 is open

G14615128

Courtesy of SUBARU OF AMERICA, INC.

When No. 25 is open

G14615129

Courtesy of SUBARU OF AMERICA, INC.

When No. 26 is open

G14615130

Courtesy of SUBARU OF AMERICA, INC.

When No. 27 is open

G14615131

Courtesy of SUBARU OF AMERICA, INC.

DIAG-CAN, Power unit CAN, (I) Power unit 2 CAN, (H) Advanced safety CAN

When No. 1 is open

NOTE:

Perform the inspection from step 6 using the check sheet of communication for initializing. (There may be a malfunction other than open circuit) Go to 6 .

G14615132

Courtesy of SUBARU OF AMERICA, INC.

When No. 2 is open

G14615133

Courtesy of SUBARU OF AMERICA, INC.

When No. 3 is open

G14615134

Courtesy of SUBARU OF AMERICA, INC.

When No. 4 is open

G14615135

Courtesy of SUBARU OF AMERICA, INC.

When No. 5 is open

G14615136

Courtesy of SUBARU OF AMERICA, INC.

When No. 6 is open

G14615137

Courtesy of SUBARU OF AMERICA, INC.

When No. 7 is open

NOTE:

This is the same as for No. 8, No. 12, No. 15, No. 20, No. 21 and No. 22, but it is possible to diagnose using examples of lost communication detection in each module.

G14615138

Courtesy of SUBARU OF AMERICA, INC.

When No. 8 is open

NOTE:

This is the same as for No. 7, No. 12, No. 15, No. 20, No. 21 and No. 22, but it is possible to diagnose using examples of lost communication detection in each module.

G14615138

Courtesy of SUBARU OF AMERICA, INC.

When No. 9 is open

G14615140

Courtesy of SUBARU OF AMERICA, INC.

When No. 10 is open

G14615141

Courtesy of SUBARU OF AMERICA, INC.

When No. 11 is open

G14615142

Courtesy of SUBARU OF AMERICA, INC.

When No. 12 is open

NOTE:

This is the same as for No. 7, No. 8, No. 15, No. 20, No. 21 and No. 22, but it is possible to diagnose using examples of lost communication detection in each module.

G14615138

Courtesy of SUBARU OF AMERICA, INC.

When No. 13 is open

G14615144

Courtesy of SUBARU OF AMERICA, INC.

When No. 14 is open

G14615145

Courtesy of SUBARU OF AMERICA, INC.

When No. 15 is open

NOTE:

This is the same as for No. 7, No. 8, No. 12, No. 20, No. 21 and No. 22, but it is possible to diagnose using examples of lost communication detection in each module.

G14615138

Courtesy of SUBARU OF AMERICA, INC.

When No. 16 is open

G14615147

Courtesy of SUBARU OF AMERICA, INC.

When No. 17 is open

G14615148

Courtesy of SUBARU OF AMERICA, INC.

When No. 18 is open

G14615149

Courtesy of SUBARU OF AMERICA, INC.

When No. 19 is open

G14615150

Courtesy of SUBARU OF AMERICA, INC.

When No. 20 is open

NOTE:

This is the same as for No. 7, No. 8, No. 12, No. 15, No. 21 and No. 22, but it is possible to diagnose using examples of lost communication detection in each module.

G14615138

Courtesy of SUBARU OF AMERICA, INC.

When No. 21 is open

NOTE:

This is the same as for No. 7, No. 8, No. 12, No. 15, No. 20 and No. 22, but it is possible to diagnose using examples of lost communication detection in each module.

G14615138

Courtesy of SUBARU OF AMERICA, INC.

When No. 22 is open

NOTE:

This is the same as for No. 7, No. 8, No. 12, No. 15, No. 20 and No. 21, but it is possible to diagnose using examples of lost communication detection in each module.

G14615138

Courtesy of SUBARU OF AMERICA, INC.
