Front Fender: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE
  3. Remove the clip, and remove the cover fender UPR.
    G14612360Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bracket side front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER BRACKET
  5. Remove the light assembly head. Ref. to LIGHTING SYSTEM>HEADLIGHT ASSEMBLY>REMOVAL
  6. Remove the cowl panel side. Ref. to EXTERIOR/INTERIOR TRIM>COWL PANEL>REMOVAL
  7. Remove the mud guard front. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>REMOVAL
  8. Remove the spoiler assembly side sill. Ref. to EXTERIOR/INTERIOR TRIM>SIDE GARNISH & SIDE SPOILER>REMOVAL
  9. Remove the garnish assembly fender.
    CAUTION:

    Do not reuse the garnish assembly fender.

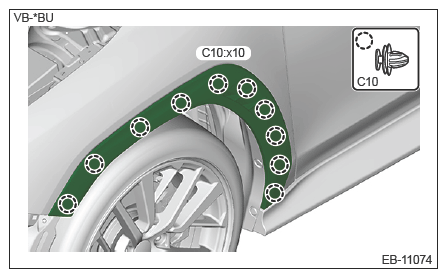

    G14613107Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the cover A pillar assembly. Ref. to EXTERIOR BODY PANELS>DOOR SASH (TAPE/MOLDING)>REMOVAL>COVER A PILLAR ASSEMBLY
  11. Remove the clip, and remove the cover fender LWR. (CVT model)
    NOTE:

    Pull out toward mud guard front.

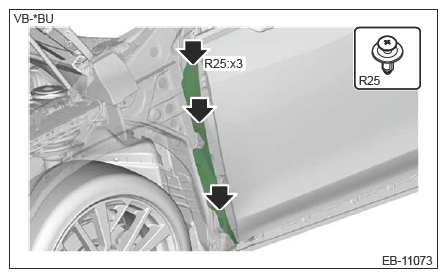

    G14613108Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the bolts and nuts, and remove the fender front.

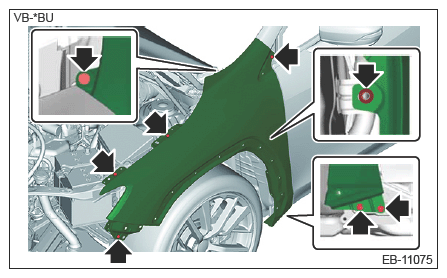

    G14613109Courtesy of SUBARU OF AMERICA, INC.
