Front Bumper

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

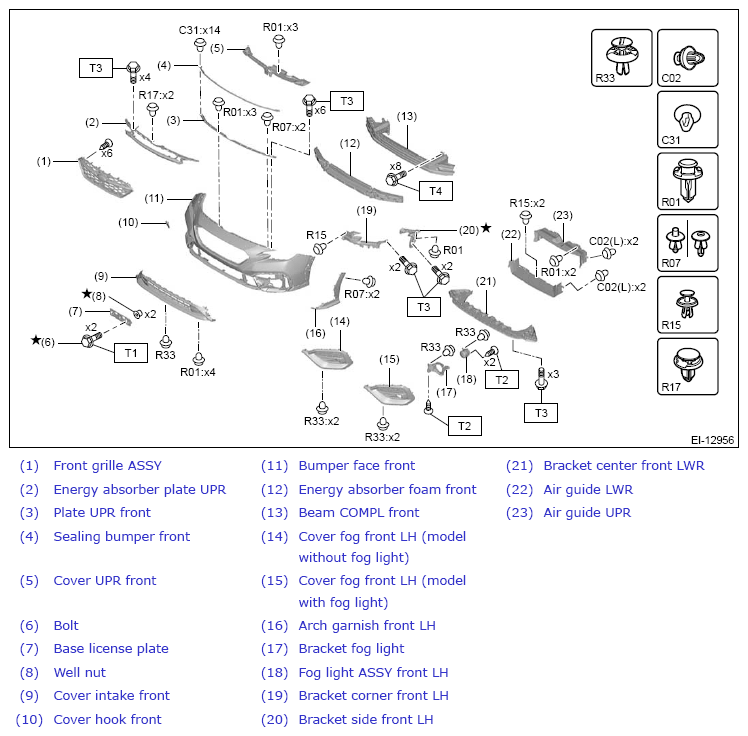

Fig 1: Front Bumper Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1, 0.7)

T2: 2 (0.2, 1.5)

T3: 7.5 (0.8, 5.5)

T4: 32 (3.3, 23.6)
