Push Button Ignition Switch: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the panel assembly center. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CLUSTER>REMOVAL
  3. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL
  4. Remove the panel start switch.

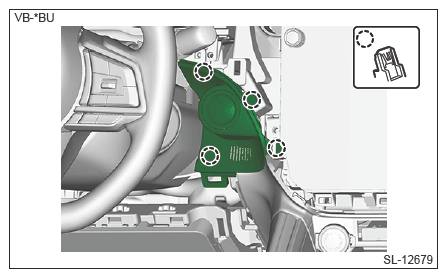

    1. Release the claws, and pull out the panel start switch.
      G14612851Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connectors and remove the panel start switch.

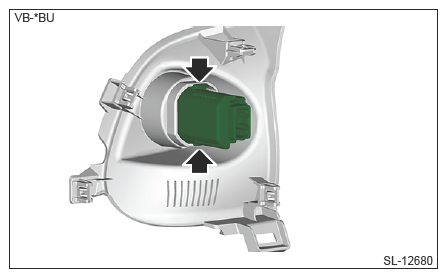

  5. Release the claws, and remove the push button start switch.
    G14612852Courtesy of SUBARU OF AMERICA, INC.
