Rear Differential

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

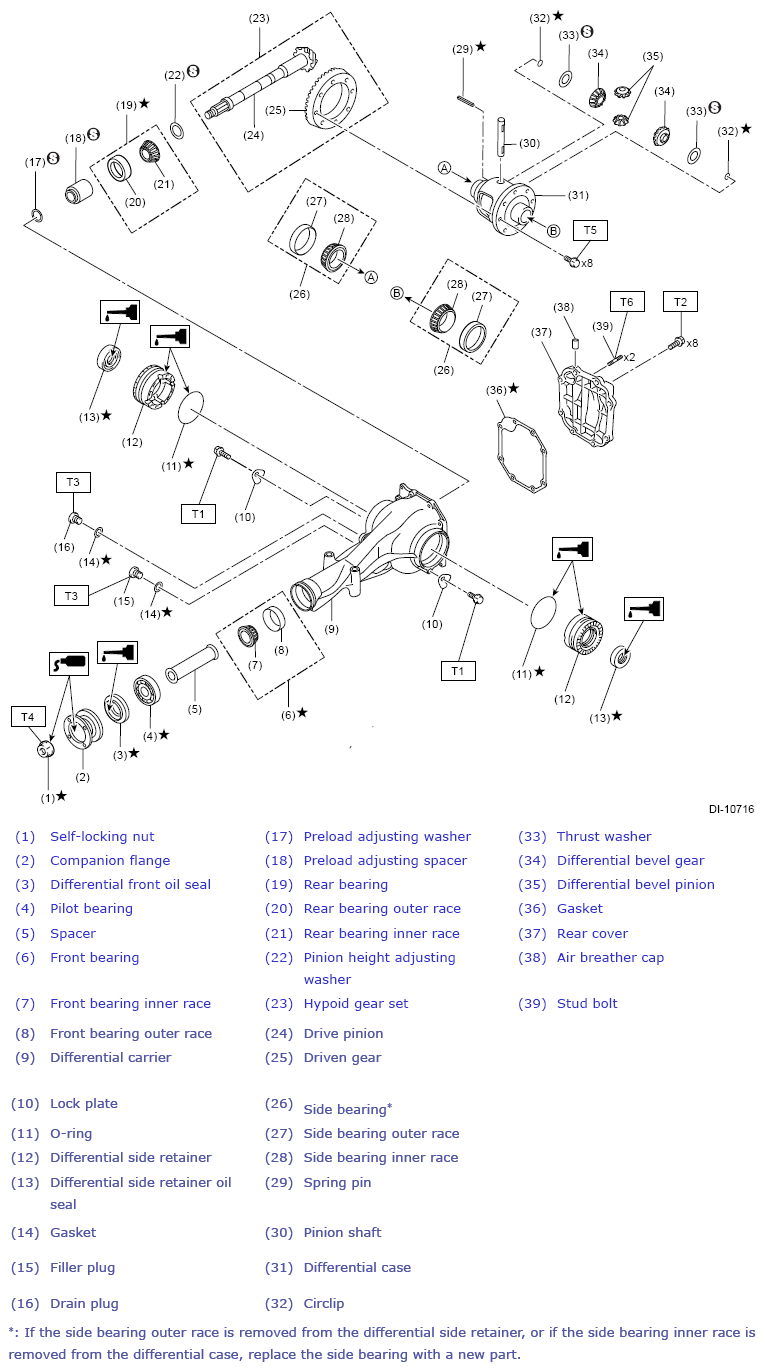

Fig 1: Rear Differential Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 34 (3.5, 25.1)

T3: 50 (5.1, 36.9)

T4: Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VB-TYPE)>ASSEMBLY .

T5: Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VB-TYPE)>ASSEMBLY .

T6: Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VB-TYPE)>ASSEMBLY .
