EyeSight Assist Monitor: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the grille speaker side. Ref. to ENTERTAINMENT & MONITORING>FRONT SPEAKER>REMOVAL>TWEETER
  3. Remove the grille front defroster. Ref. to AIR CONDITIONER>SUNLOAD SENSOR (AUTO A/C MODEL)>REMOVAL

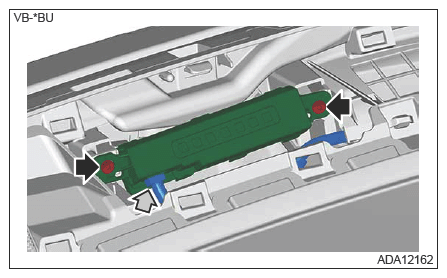

  4. Remove the EyeSight assist monitor.
    1. Remove the screws.
    2. Disconnect the connector and remove the EyeSight assist monitor.
      G14613222Courtesy of SUBARU OF AMERICA, INC.
