Reservoir Tank: Removal
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

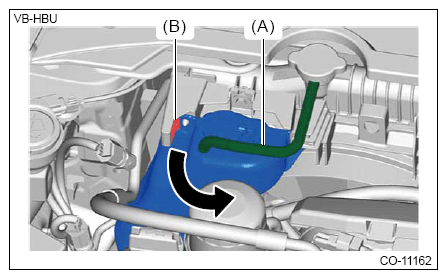

- Pull out the over flow hose (A) from the reservoir tank.
- Release the claw (B) and pull out the reservoir tank in the direction of the arrow.
 Courtesy of SUBARU OF AMERICA, INC.
|
