Radiator Fan System: Wiring Diagram

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

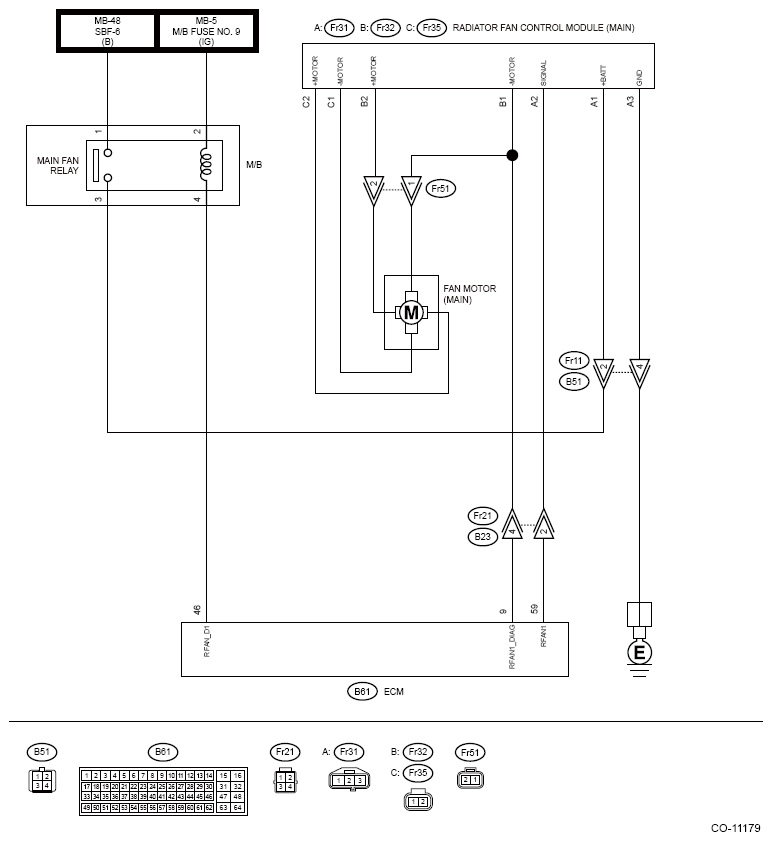

G14601318Courtesy of SUBARU OF AMERICA, INC.

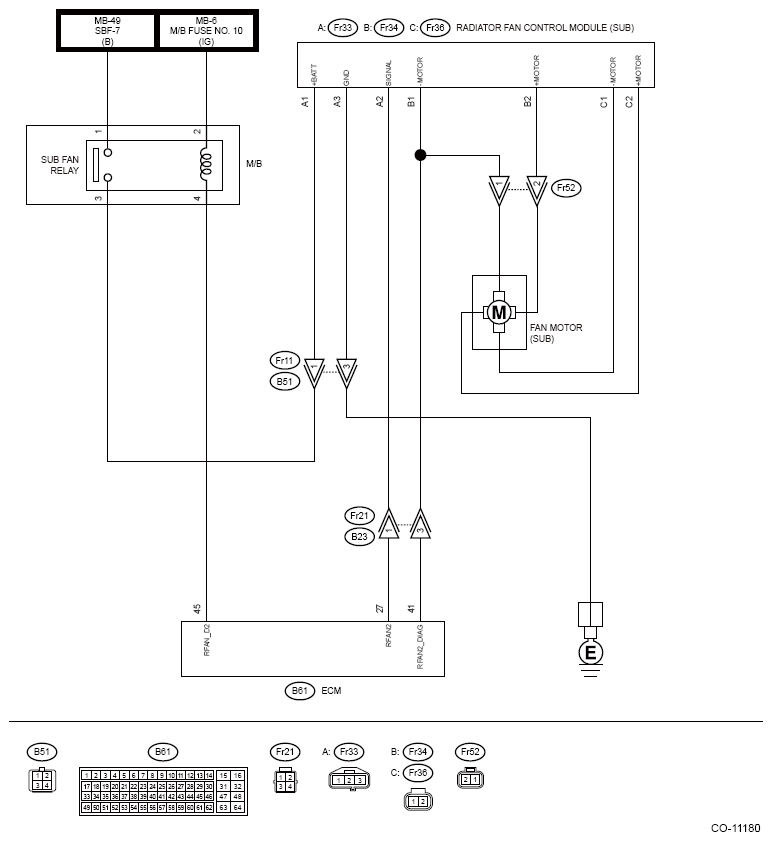

G14601319Courtesy of SUBARU OF AMERICA, INC.
