Center Brake Pipe

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

When removing the brake pipe, do not bend.

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the crossmember support rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL TANK PROTECTOR>REMOVAL .
  5. Remove the under cover rear RH. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>REMOVAL .
  6. Remove the rear exhaust pipe. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .
  7. Remove the propeller shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>PROPELLER SHAFT>REMOVAL .
  8. Remove the cable assembly hand brake. (Except for the electronic parking brake model) Ref. to PARKING BRAKE>PARKING BRAKE CABLE>REMOVAL .
  9. Remove the adapter cord EPB. (Electronic parking brake model) Ref. to PARKING BRAKE>PARKING BRAKE ACTUATOR>REMOVAL>PARKING BRAKE HARNESS .
  10. Remove the rear differential. Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VB-TYPE)>REMOVAL .
  11. Remove the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL TANK>REMOVAL .
  12. Remove the support sub frame front.
    1. Support the rear suspension assembly using a transmission jack.
      NOTE:

      Since the rear suspension assembly is heavy, make sure that it is firmly supported so that it is level.

    2. Remove the bolts, and remove the support sub frame front.

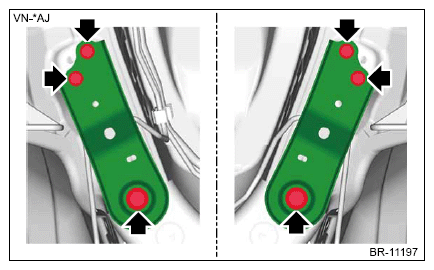

      G14602303Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the pipe center brake rear.
    1. Disconnect the pipe center brake rear using a flare nut wrench.

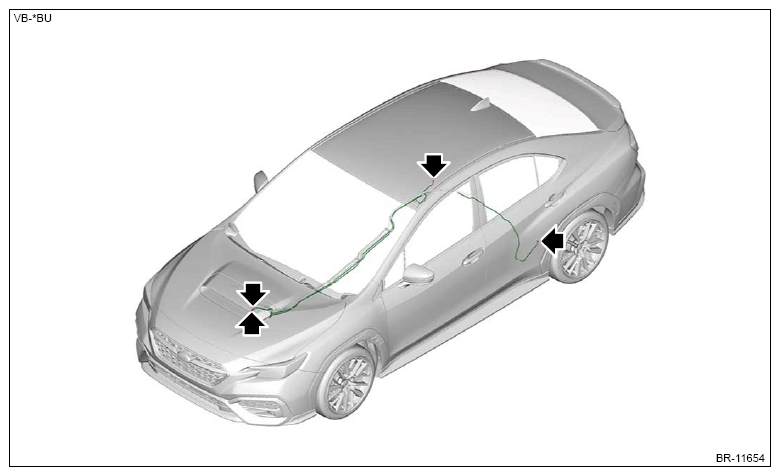

      G14602304Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the pipe center brake rear from the pipe clamp.

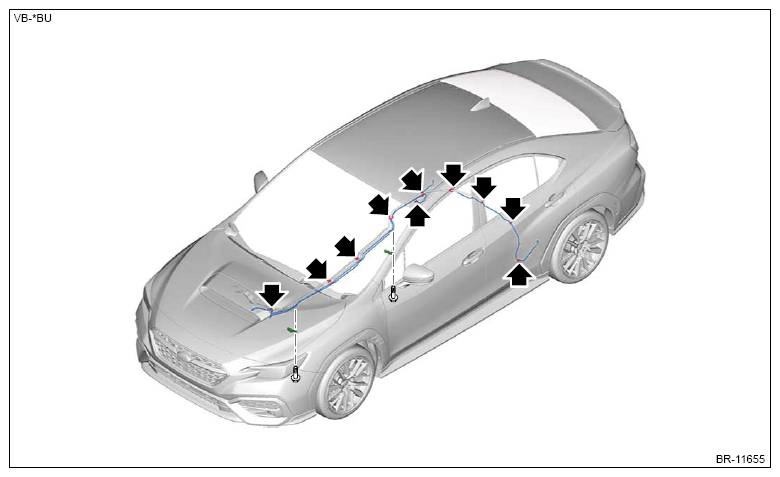

      G14602305Courtesy of SUBARU OF AMERICA, INC.
