Neutral Position Adjustment

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not rotate the steering roll connector to more than the specified number of turns. Otherwise, the roll connector internal wire may be broken.
When determining the end stop, rotate the connector slowly without applying excessive force. Applying excessive force at the end stop may break the internal wire.

Check that front wheels are positioned in straight ahead direction.

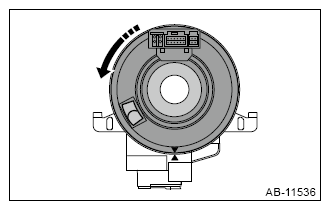

Be sure to slowly rotate the steering roll connector counterclockwise until it stops.

Courtesy of SUBARU OF AMERICA, INC.

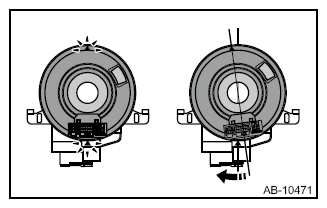

If the connector passes the lowermost position when it stops rotating, return the connector to the lowermost position.

Courtesy of SUBARU OF AMERICA, INC.

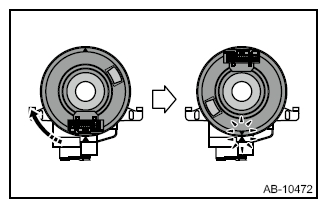

Make sure that the connector is at the lowermost position, and then rotate the steering roll connector clockwise by approx. 2.5 turns to return the connector to the uppermost position. The mark "Δ" will be aligned.

Courtesy of SUBARU OF AMERICA, INC.

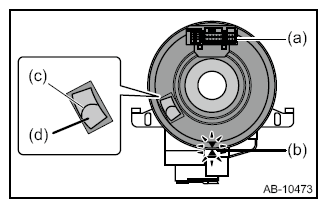

Check the following items to make sure that the steering roll connector is at the neutral position.
- The connector (a) is at the uppermost position.
- The alignment mark (b) is aligned.
- The top (c) of the flat cable U-turn section can be seen from the sight glass (d).
Courtesy of SUBARU OF AMERICA, INC.
