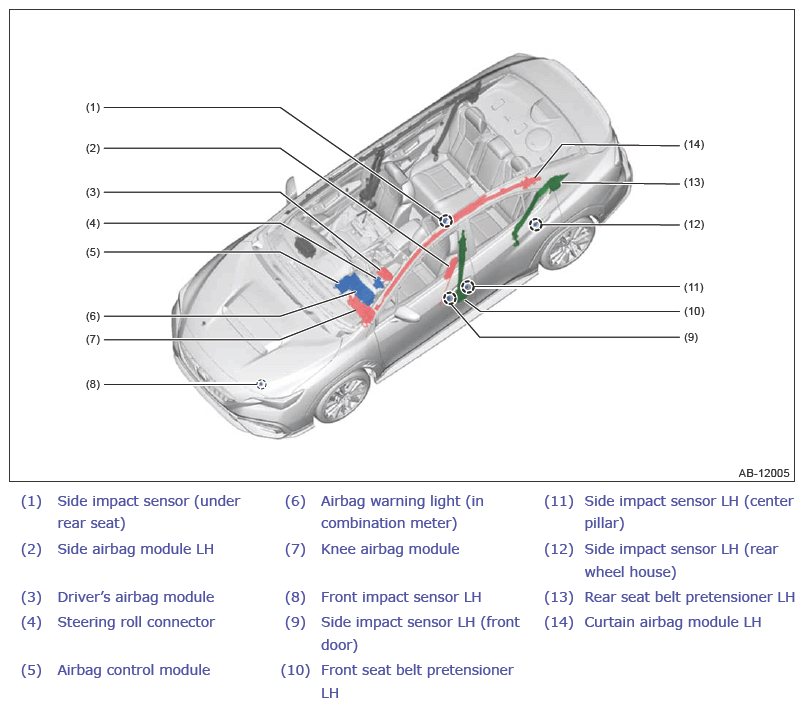

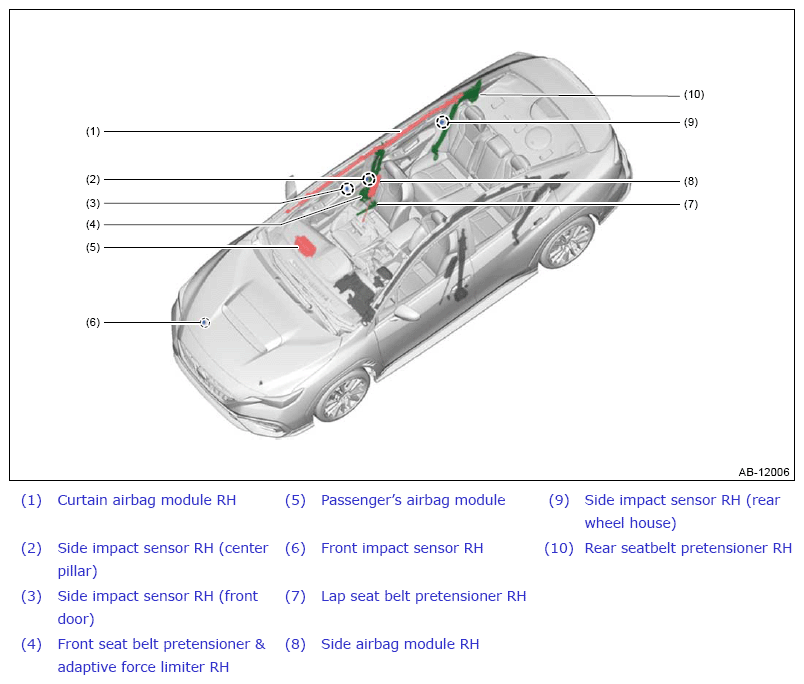

Section 14 (Air Bag System): General Description: Location
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For the occupant detection system, refer to "OCCUPANT DETECTION SYSTEM" of "AIRBAG (DIAGNOSTICS)". Ref. to AIRBAG (DIAGNOSTICS)>ELECTRICAL COMPONENT LOCATION>LOCATION>OCCUPANT DETECTION SYSTEM
