Steering Roll Connector

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

How to disconnect:

NOTE:

When pulling the slide lock or disconnecting the connector, be sure to hold the connector, not the harness, to disconnect.

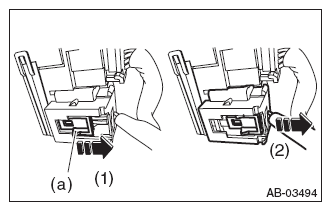

Pull the slide lock (a) in the direction of arrow.

With the slide lock (a) pulled, disconnect the connector.

Courtesy of SUBARU OF AMERICA, INC.

How to connect:
NOTE:
Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

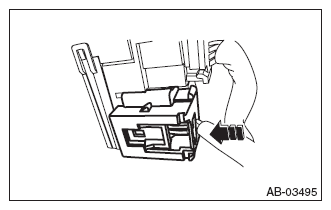

Holding the connector, push it in securely until a clicking sound is heard.

Courtesy of SUBARU OF AMERICA, INC.
