GPS Antenna

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the grille speaker side. Ref. to ENTERTAINMENT & MONITORING>FRONT SPEAKER>REMOVAL>TWEETER
  3. Remove the grille front defroster. Ref. to AIR CONDITIONER>SUNLOAD SENSOR (AUTO A/C MODEL)>REMOVAL
  4. Remove the GPS antenna assembly.

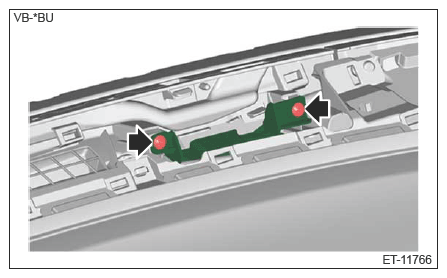

    1. Remove the screws.
      G14612506Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the GPS antenna assembly.
