Accessory Power Supply Socket: Removal: Rear

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the cover assembly front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL
  3. Remove the socket assembly.
    1. Disconnect the connector.

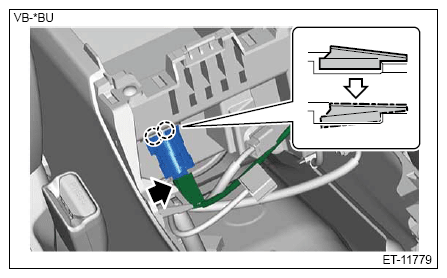

    2. While releasing the claw, press it in from the rear to remove the socket assembly.
      G14612522Courtesy of SUBARU OF AMERICA, INC.
