Parking Brake Actuator

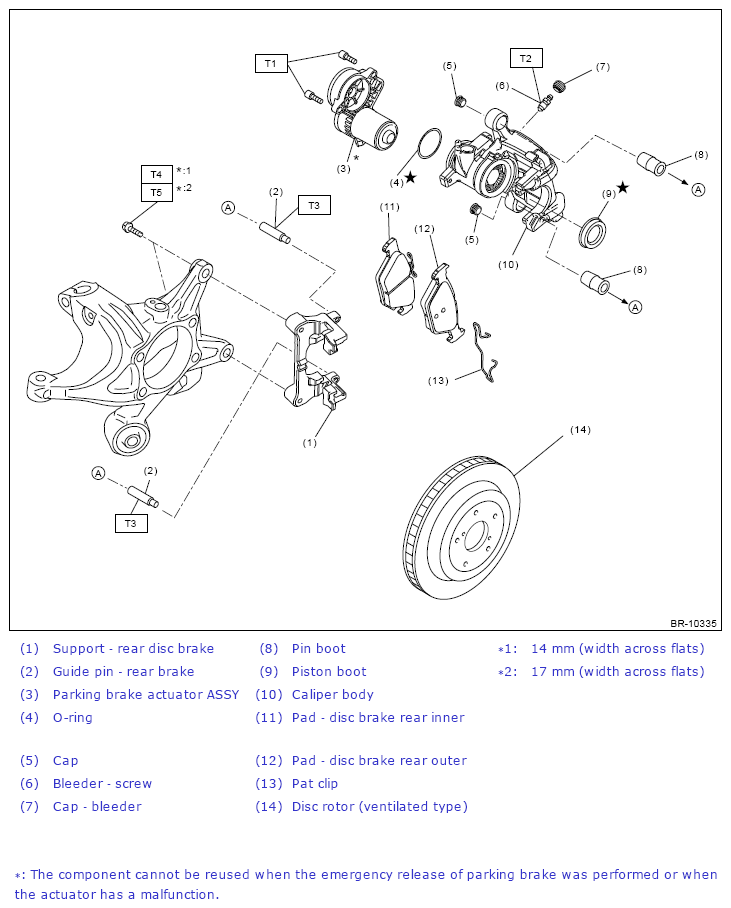

Fig 1: Parking Brake Actuator Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 17 (1.7, 12.5)

T3: 25 (2.5, 18.4)

T4: 66 (6.7, 48.7)

T5: 110 (11.2, 81.1)

*: The component cannot be reused when the emergency release of parking brake was performed or when the actuator has a malfunction.
