Stop Light Switch: Installation

Install the stop light switch.

Align the groove of clip with the cutout portion of stop light switch push rod.

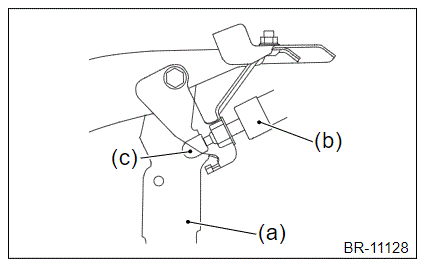

While pulling up the brake pedal (a) toward you, let the push rod of the stop light switch (b) stroke, and insert it until it reaches the stopper (c).

Courtesy of SUBARU OF AMERICA, INC.

Install the stop light switch by turning it clockwise.
Connect the connector.

Adjust the stop light switch position. Refer to ADJUSTMENT .
Install the knee airbag module.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the cover assembly - instrument panel LWR driver.
Connect the battery ground terminal. Refer to NOTE>NOTE>BATTERY .
