Master Cylinder

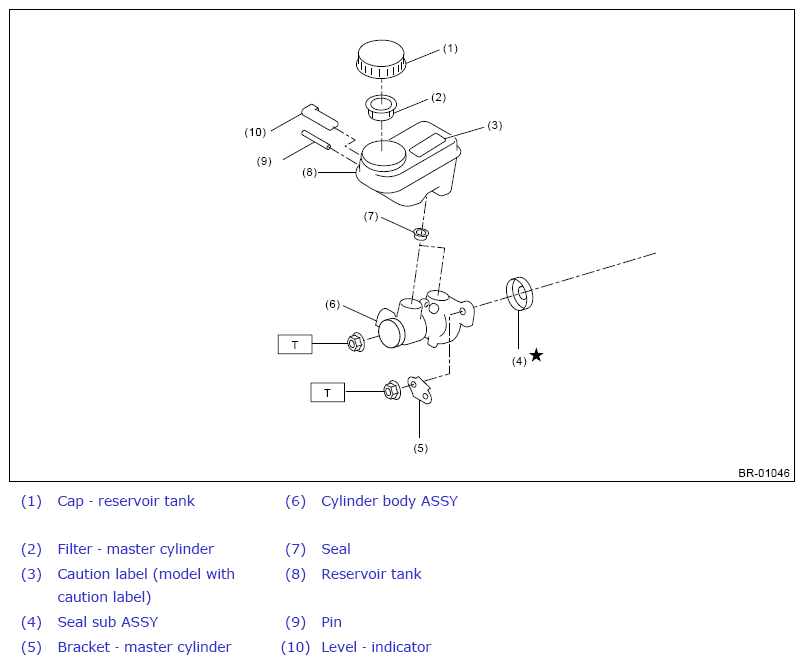

Fig 1: Master Cylinder Components (With Torque Specification)
G13646550Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 13 (1.3, 9.6)
