Front Disc Brake

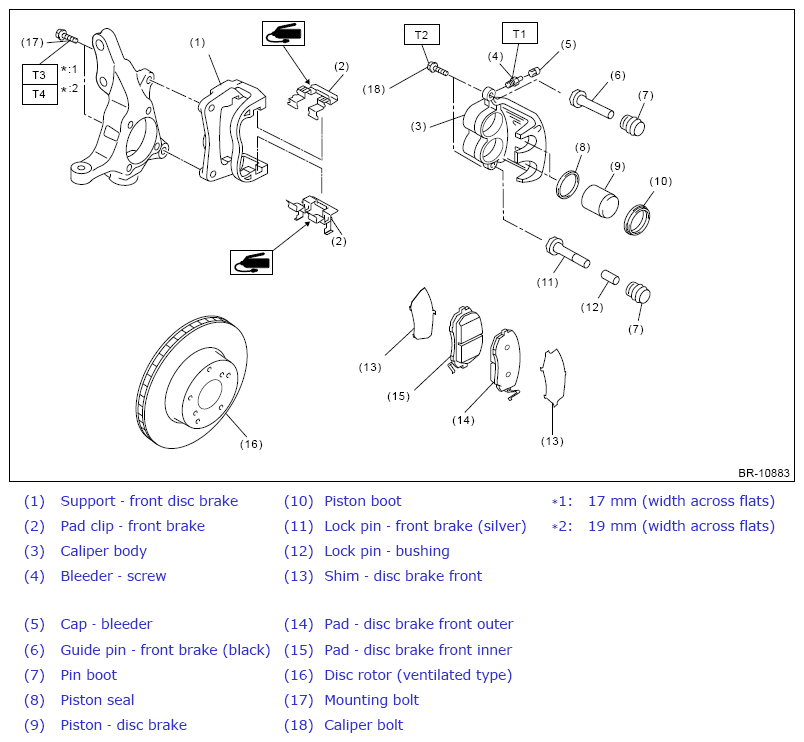

Fig 1: Front Disc Brake Components (With Torque Specification) (Floating 2-Pot Piston Type)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 20.3)

T3: 80 (8.2, 59)

T4: 135 (13.8, 99.6)

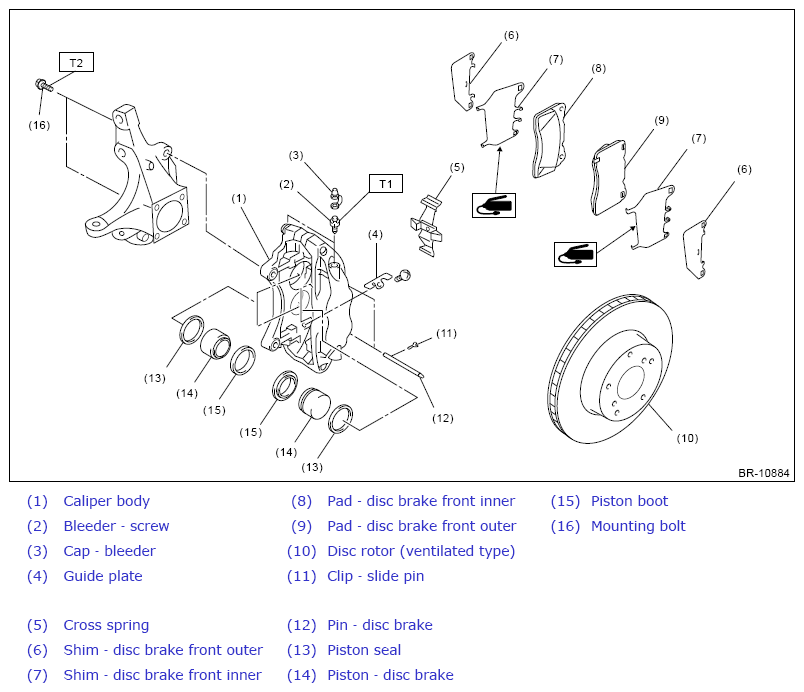

Fig 2: Front Disc Brake Components (With Torque Specification) (Opposed 4-Pot Piston Type)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2, 14.8)

T2: 120 (12.2, 88.5)

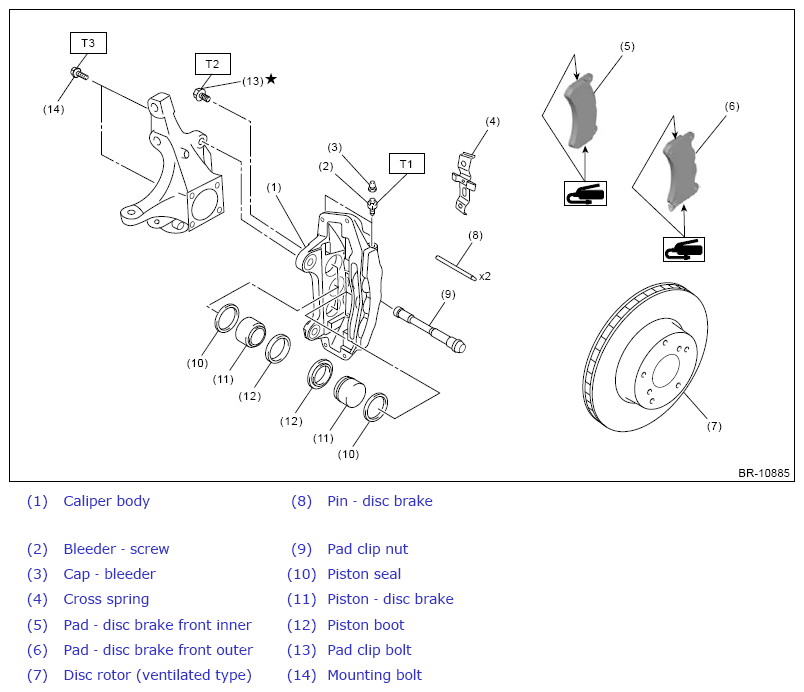

Fig 3: Front Disc Brake Components (With Torque Specification) (Opposed 6-Pot Piston Type)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18.5 (1.9, 13.6)

T2: 30 (3.1, 22.1)

T3: 120 (12.2, 88.5)
