Rear Seat: Disassembly

Remove the rear seat. Refer to SEATS>REAR SEAT>REMOVAL .
Remove the headrest assembly - rear backrest.

Remove the armrest assembly - rear center. (Models with armrest)

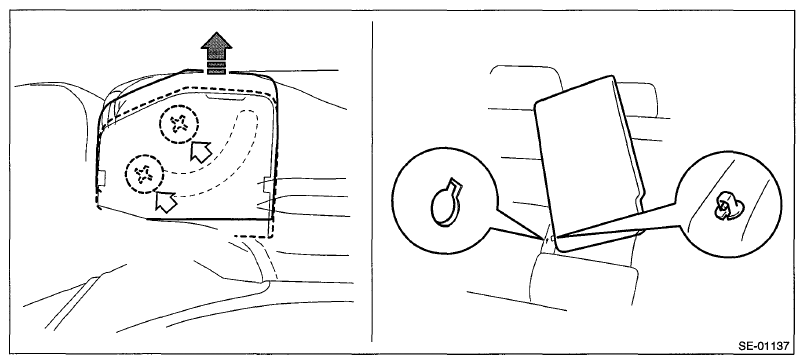

Remove the cover - armrest by pulling it in the direction of the arrow (black).

Remove the screws and remove the armrest assembly - rear center.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The armrest assembly - rear center cannot be detached unless pin positions on the RH side of the backrest assembly and on the center side of the armrest assembly - rear are aligned.

Remove the knob - backrest. (Screw-in type)

Courtesy of SUBARU OF AMERICA, INC.
Remove the clips on the backside of the cover COMPL - rear backrest LH.

Courtesy of SUBARU OF AMERICA, INC.
Detach the plastic fastener at the bottom of backrest assembly LH and turn over the cover COMPL - rear backrest LH.

Courtesy of SUBARU OF AMERICA, INC.
Remove the plastic hooks on the back side of the backrest assembly LH.

Courtesy of SUBARU OF AMERICA, INC.
Remove the lock assembly - rear backrest rear LH.
CAUTION: Be careful of burrs on the panel edges.

Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing - headrest and the bushing - lock assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the pad assembly - main LH from the frame assembly - rear backrest LH.
Remove the hog rings (A) and wire clip (B), then remove the cover COMPL - rear backrest LH.

Courtesy of SUBARU OF AMERICA, INC.
Referring to the above steps, disassemble the backrest assembly RH.
Remove the hog rings (A) on the back side of the rear seat cushion assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the hog rings (A), then remove the cover - rear cushion.

Courtesy of SUBARU OF AMERICA, INC.
