MODELS WITHOUT EyeSight

NOTE: Do not remove the spot map light if removing the bulb only.
  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the light assembly - map.
    CAUTION: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
    1. Release the claws and remove the lens.
    2. Remove the screws.

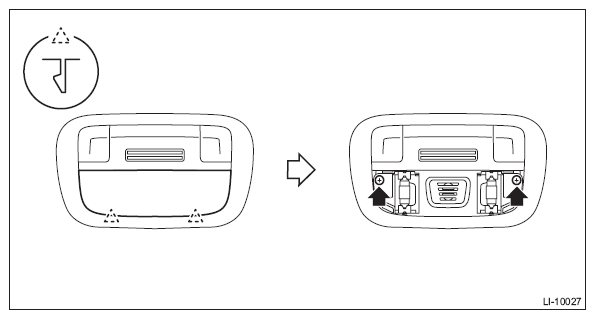

      • Model without sunroof
        G10317162Courtesy of SUBARU OF AMERICA, INC.

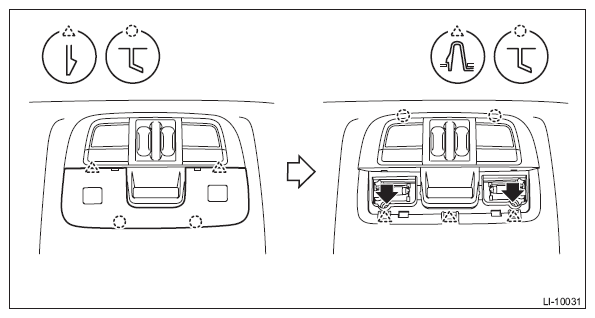

      • Model with sunroof
        G10317163Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector and remove the light assembly - map and the map light bulb.
      CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
