MODELS WITH EyeSight

NOTE:
  • The spot map light is a single unit with the stereo camera cover. If defective, replace the stereo camera cover. Refer to EYESIGHT>STEREO CAMERA .
  • Do not remove the stereo camera cover if removing the bulb only.
  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the map light bulb.
    CAUTION: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

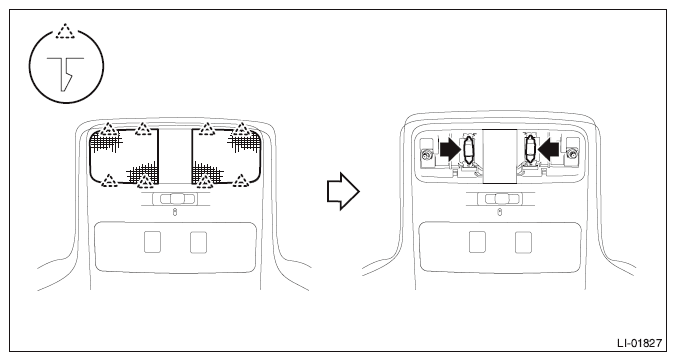

    1. Release the claws and remove the lens.
    2. Remove the map light bulb.
      G10298593Courtesy of SUBARU OF AMERICA, INC.
