Day Time Running Resistor: Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the screw and clips, and turn over the front side of the mud guard - front.
    G12455844Courtesy of SUBARU OF AMERICA, INC.

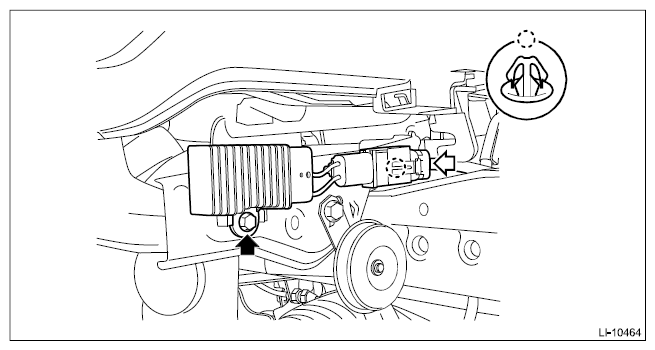

  4. Remove the resistor assembly - daytime running light.
    CAUTION: The resistor may become hot. Be careful not to burn yourself when removing it.
    1. Disconnect the connector.
    2. Remove the bolts, then remove the resistor assembly - daytime running light.
      G12455845Courtesy of SUBARU OF AMERICA, INC.
