Hazard Switch: Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the center grille assembly. Refer to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .

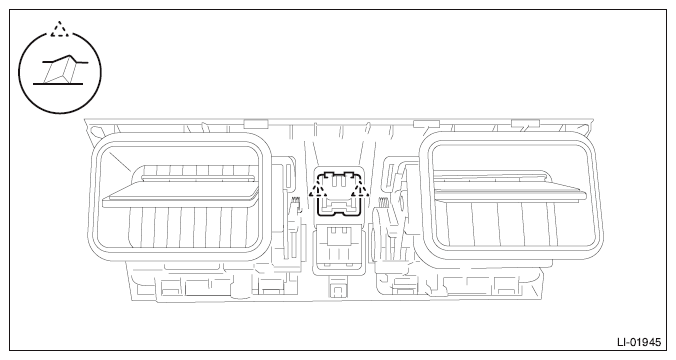

  3. Release the claws, and then remove the switch - hazard.
    G10298559Courtesy of SUBARU OF AMERICA, INC.
