Front Speaker: Removal: Tweeter

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the speaker assembly - tweeter.
    1. Affix protective tape (a) to the trim panel - front pillar UPR
    2. Release the clips and claws, then detach the grille speaker side.
      NOTE: Remove the grille speaker side by using a plastic remover.
    3. Remove the screws.

      Preparation tool:

      Stubby screwdriver

    4. Disconnect the connector and remove the speaker assembly - tweeter.

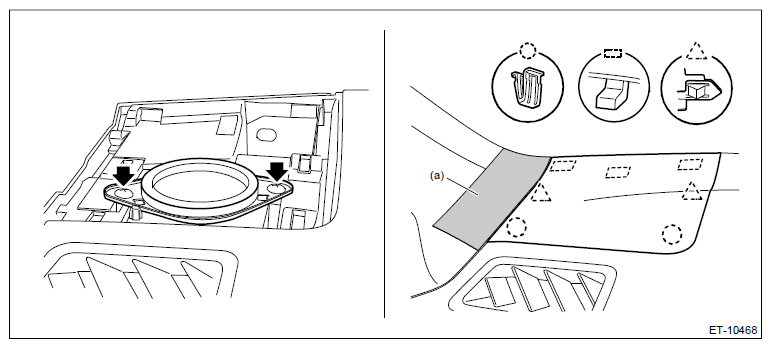

      • Model without EyeSight assist monitor
        G12455929Courtesy of SUBARU OF AMERICA, INC.

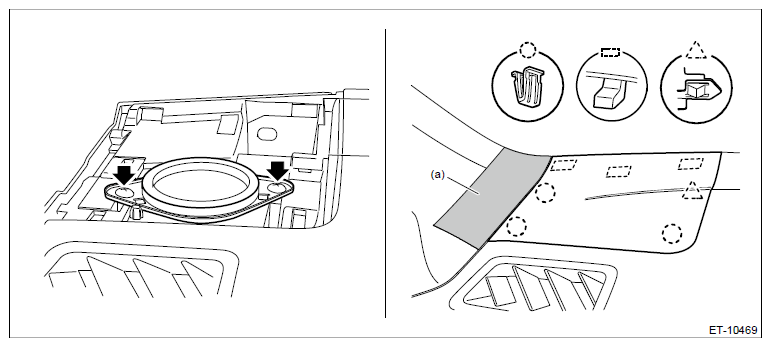

      • Model with EyeSight assist monitor
        G12455930Courtesy of SUBARU OF AMERICA, INC.
