Accessory Power Supply Socket: Removal: Front

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the glove box. Refer to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  5. Remove the center grille assembly. Refer to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  6. Remove the audio assembly or navigation assembly. Refer to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  7. Remove the socket assembly.
    1. Disconnect the connector.

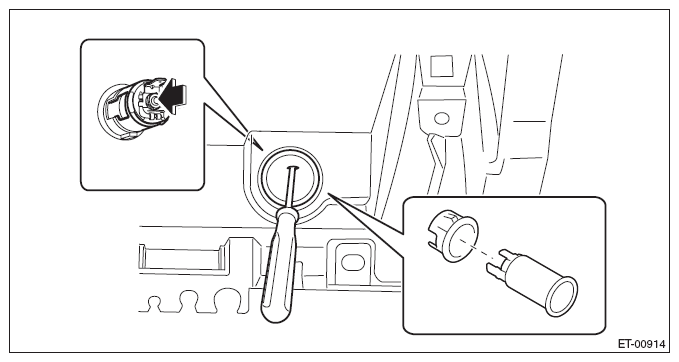

    2. While releasing the claw inside, press it in from the rear to remove the socket assembly.
      G10270812Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the clip - socket.
