EyeSight Assist Monitor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the grille speaker side. Ref. to ENTERTAINMENT & MONITORING>FRONT SPEAKER>REMOVAL>TWEETER .
  3. Remove the grille - front defroster. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>SUNLOAD SENSOR (AUTO A/C MODEL)>REMOVAL .
  4. Remove the EyeSight assist monitor.

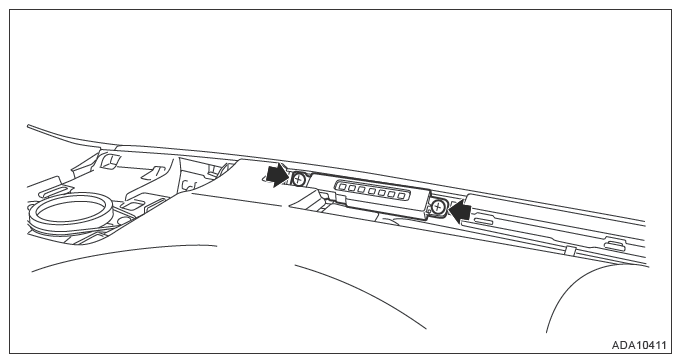

    1. Remove the screws.
    2. Disconnect the connector and remove the EyeSight assist monitor.
    G13649570Courtesy of SUBARU OF AMERICA, INC.
