Abs Wheel Speed Sensor

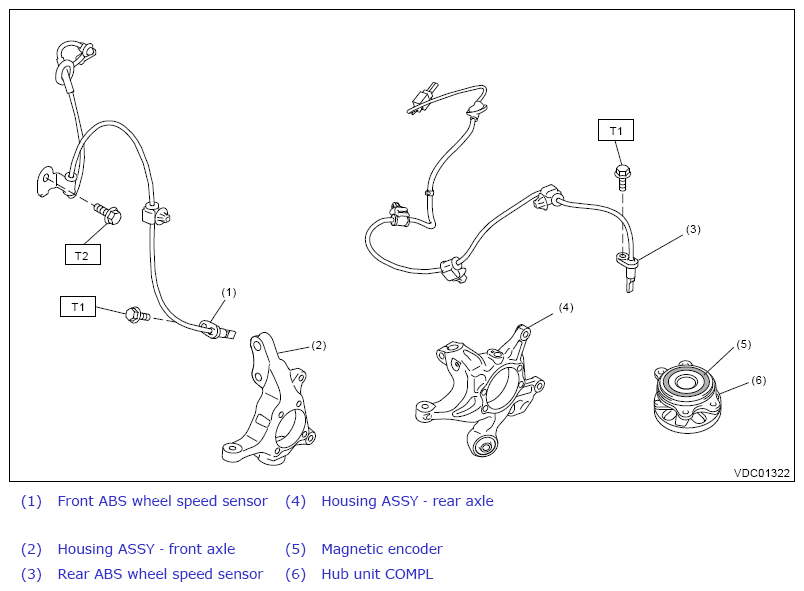

Fig 1: ABS Wheel Speed Sensor Components (With Torque Specification)

G13646507

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 33 (3.4, 24.3)
