Home >> Subaru >> 2021 >> WRX Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Telematics System (Diagnostics) >> Control Module I/O Signal >> System Block Diagram

System Block Diagram

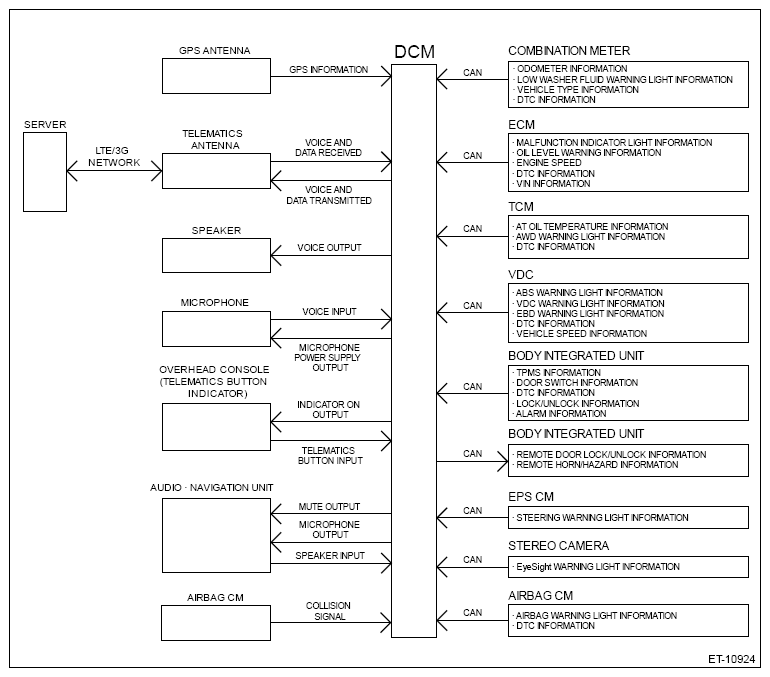

Main signals used between DCM and relevant CM

G13651385

Courtesy of SUBARU OF AMERICA, INC.
