Keyless Transmitter Battery
CAUTION:
To prevent static electricity damage to the keyless transmitter printed circuit board, touch the steel area of building with hand to discharge static electricity carried on body or clothes before disassembling the keyless transmitter.

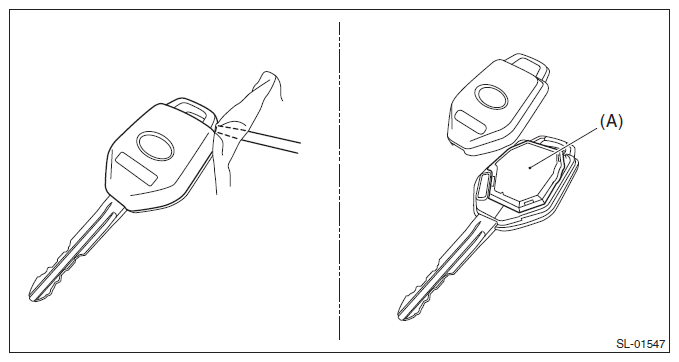

- Remove the keyless transmitter cover, and take out the transmitter case (A).
CAUTION:
Use a flat tip screwdriver with protective tape or cloth in order not to damage the components.
 Courtesy of SUBARU OF AMERICA, INC.
|

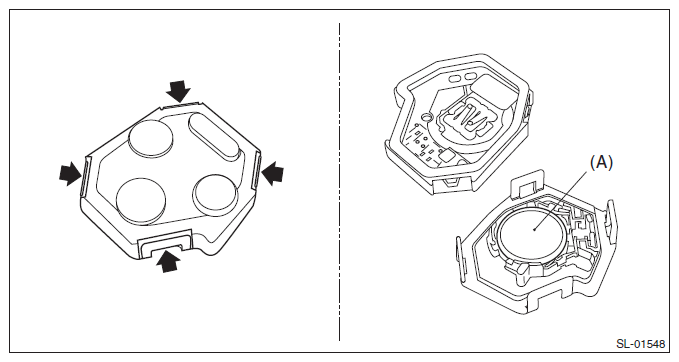

- Release the claws to open the transmitter case, then remove the battery (A).
 Courtesy of SUBARU OF AMERICA, INC.
|
